Details
200, 300, 400, 500 and 600 are available for the mount width.
Automatic alignment mechanism of the V-shaped guide.
Cam slider is removed from the rear. This facilitates adjustment.
lt is easy to lock at bottom or adjust without removing cam slide if you remove spring guide plate and spring.
Angles from 0° to 60° are available in increments of 5°.

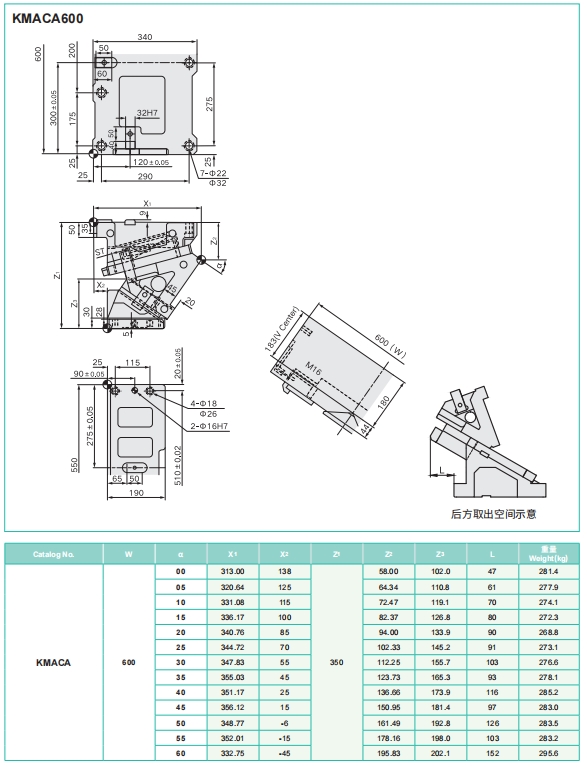

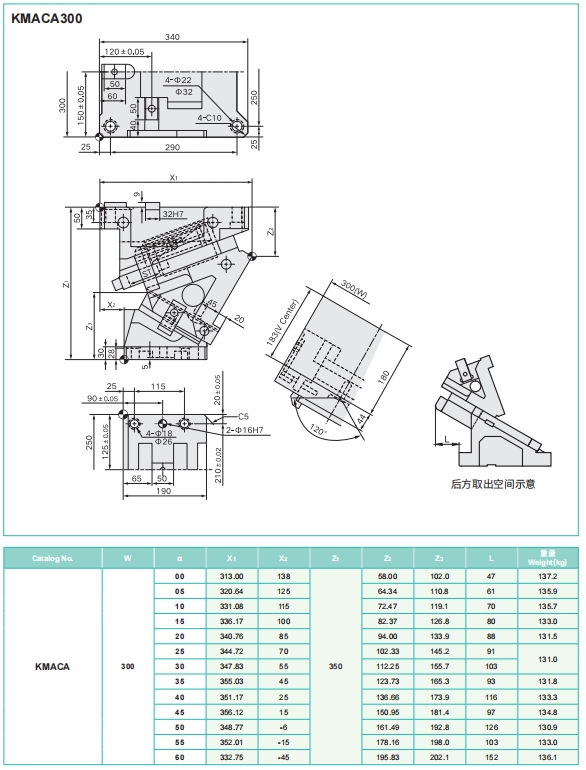

Size Chart Order Model Product Catalog
