Details

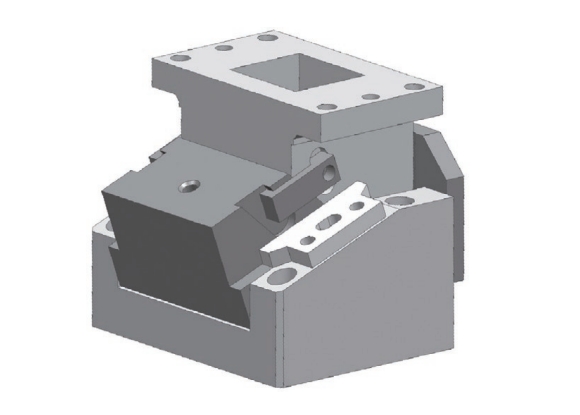

Universal die mounted type.
Sliding type with highly rigid box guide.
52, 65, 100, 150, 200, 250, 300 to 600 (at increments of 100 mm) are available for the mount width.
Available angle is 0° to 20° at increments of 5° (52 to 150 width).

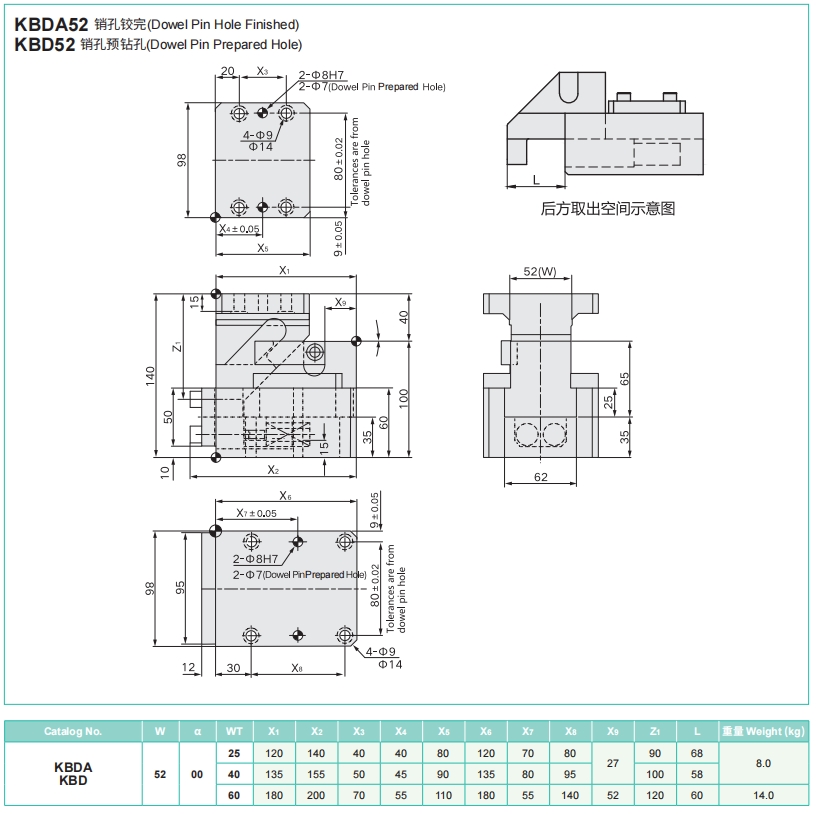

Size Chart Order Model Product Catalog
